Insulated Chimney Thimble—
$384.99
The Story

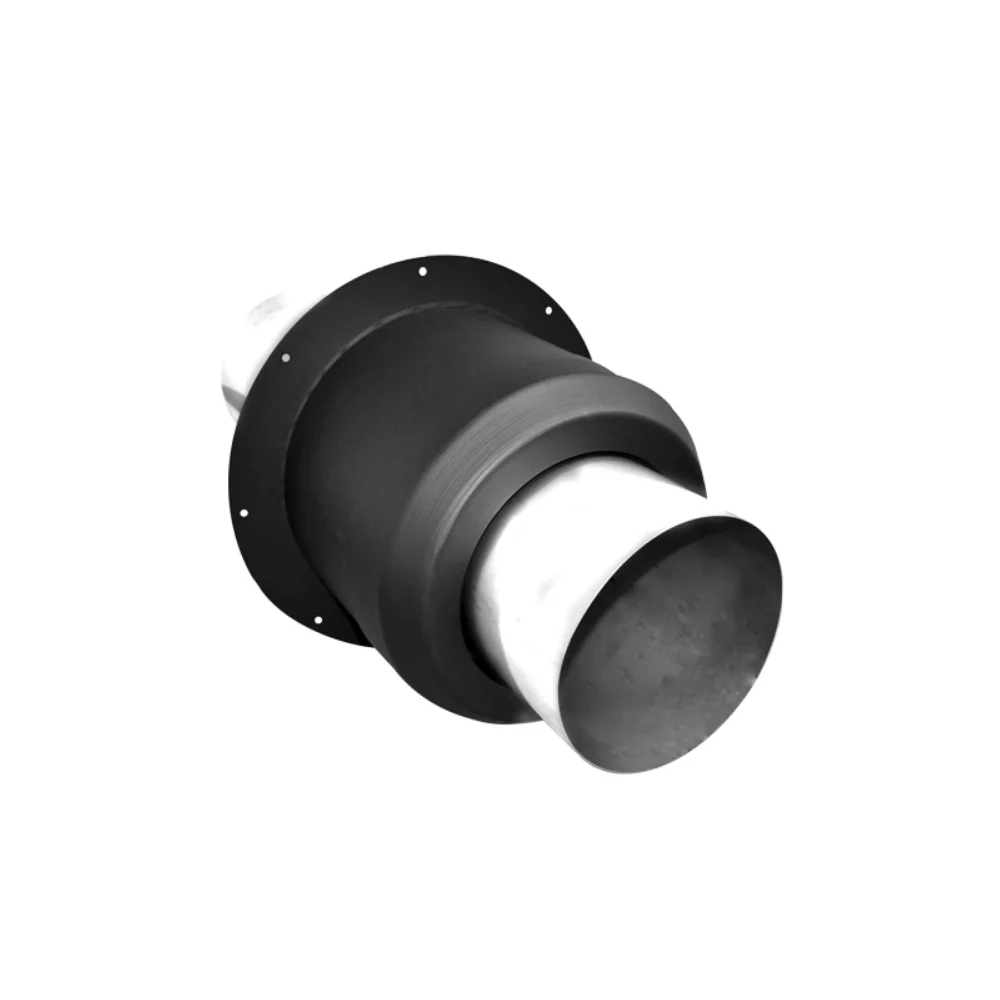

The Insulated Chimney Thimble is intended for use in conjunction with any residential and building heating appliance burning gas, liquid, or solid fuels. It is to be used as a thimble/wall pass thru to connect appliances to interior or exterior masonry chimneys while having to pass through a combustible wall in order to connect to the chimney.

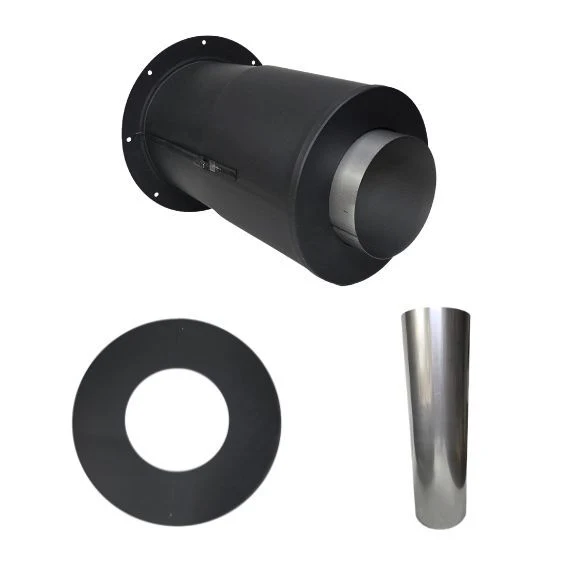

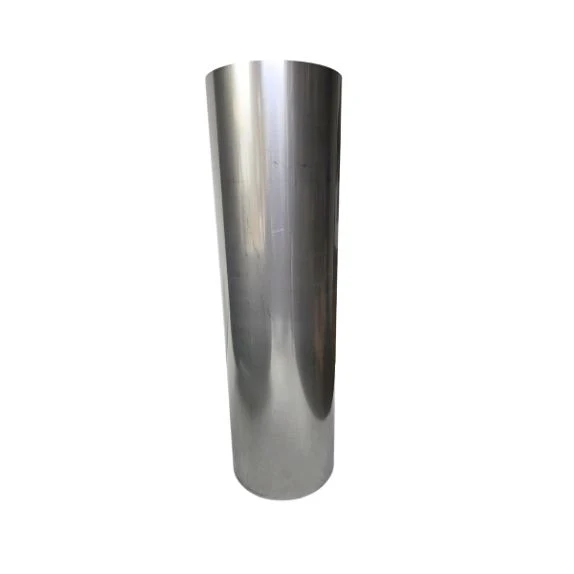

The thimble adjusts to accommodate wall thicknesses from 5" to 14". The insulated chimney thimble comes with a rigid pipe connector that is able to be cemented into a masonry chimney thimble and is able to connect directly to a tee connector for chimneys that are lined with a stainless steel flexible chimney liner. The length of the rigid pipe connector is a 20" stainless steel pipe.
The Insulated Chimney Thimble will protrude in the living space a minimum of 3". Includes trim collar for a professional, finished look! 6 in. trim ring measures 20" diameter and 8 in. trim ring measures 22" diameter.
The Insulated Chimney Thimble is an engineered and listed through-the-wall insulated thimble assembly that reduces the minimum 18 inch clearance to combustibles required by N.F.P.A. 211 standard. You must maintain at least a 2 inch air space clearance between interior masonry chimneys (which have any portion of the chimney located within the exterior wall of the building) and combustible materials. The minimum air space clearance between exterior masonry chimneys (which have the chimney completely outside the exterior wall of the building, excluding the soffit or corice area) and combustible material shall be at least 1 inch.
| Framing Dimensions 6 in. | Framing Dimensions 8 in. |
|---|---|
| 13.75" x 13.75" | 15.75" x 15.75" |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The Insulated Chimney Thimble is intended for use in conjunction with any residential and building heating appliance burning gas, liquid, or solid fuels. It is to be used as a thimble/wall pass thru to connect appliances to interior or exterior masonry chimneys while having to pass through a combustible wall in order to connect to the chimney.
The thimble adjusts to accommodate wall thicknesses from 5" to 14". The insulated chimney thimble comes with a rigid pipe connector that is able to be cemented into a masonry chimney thimble and is able to connect directly to a tee connector for chimneys that are lined with a stainless steel flexible chimney liner. The length of the rigid pipe connector is a 20" stainless steel pipe.
The Insulated Chimney Thimble will protrude in the living space a minimum of 3". Includes trim collar for a professional, finished look! 6 in. trim ring measures 20" diameter and 8 in. trim ring measures 22" diameter.
The Insulated Chimney Thimble is an engineered and listed through-the-wall insulated thimble assembly that reduces the minimum 18 inch clearance to combustibles required by N.F.P.A. 211 standard. You must maintain at least a 2 inch air space clearance between interior masonry chimneys (which have any portion of the chimney located within the exterior wall of the building) and combustible materials. The minimum air space clearance between exterior masonry chimneys (which have the chimney completely outside the exterior wall of the building, excluding the soffit or corice area) and combustible material shall be at least 1 inch.
| Framing Dimensions 6 in. | Framing Dimensions 8 in. |
|---|---|
| 13.75" x 13.75" | 15.75" x 15.75" |
