Double Wall Black Stove Adapter

Used to securely connect double wall black stove pipe to an appliance on the top or out the back of the unit. The inner pipe will fit into the opening and the outer pipe will fit flush to the unit. Use the Stove Adapter if the collar thickness on the exhaust hole is more than 1/4" thick. If the collar thickness on the exhaust hole is less than 1/4", the inner pipe of the double wall stove pipe will fit inside the exhaust hole in most cases. Compatible with our black stove pipe along with Ventis, Champion, and Nexvent

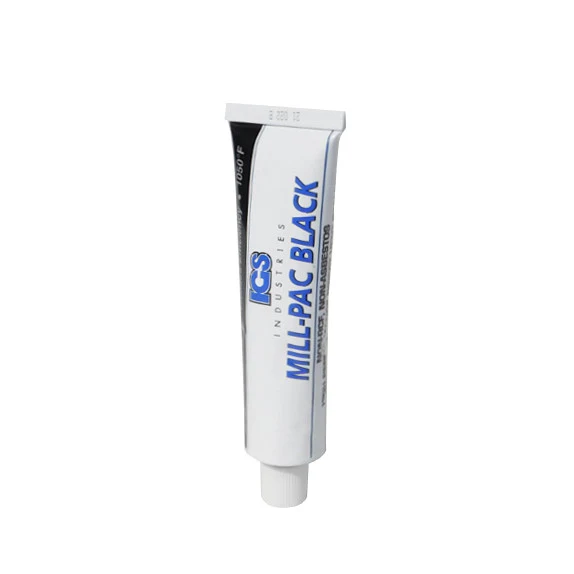

Use the conveniently sized 90ml squeeze tube of Mill-Pac to seal the connection. Maximum temperature range 1050 degrees Fahrenheit. Product cures with heat from the appliance. Optional accessory.

Measurement Chart:

Double Wall Stove Adapter

Stove Adapter Size	A	B	C	YY
6”	6”	7”	5.5”	1.5”
7”	7”	8”	5.5”	1.5”
8”	8”	9”	5.5”	1.5”

*Due to many variables beyond our control, the installer should check actual parts for final dimensions.
